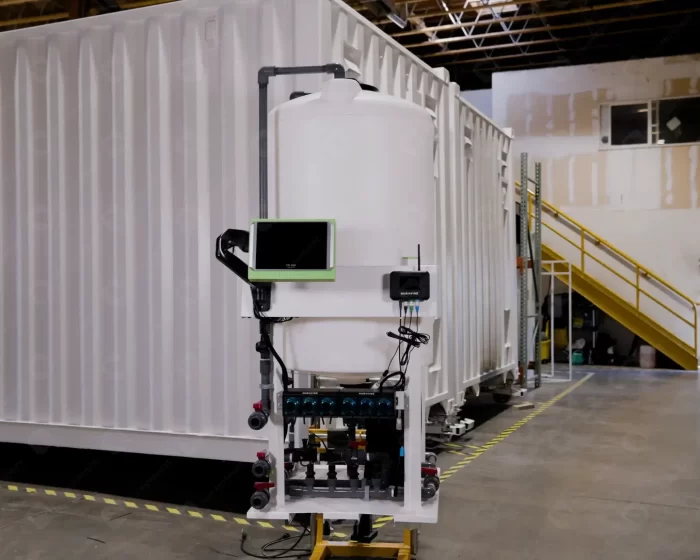

World's Most Compact

Irrigation Skid

FarmAnywhere's most compact irrigation system provides everything you need to fertigate plants, all in one package.

Comes with a TrolMaster Aqua-X Pro, a Nuravine dosing system, and a Nuravine monitoring system.

Irrigation Skid Demo

Overview

Key Features And Benefits

1 Main Pressure Pump

6 Fertiliser Dosers

Water Tank

Truly Plug-and-Play

Comes with Irrigation Controller

Pre-Tested Ready to Ship

Easy Access From Everywhere

True Plug and Play Solutions

All-in-One Fertigation System

The Proven Way to Scale Up

Scroll to the bottom for more images

Tech specs

Click on (+) for more info on the mechanical overview of the Irrigation Skid

Irrigation Dosing Controller

  • Batch Doser Bundle, includes two Elixir 3 Pump Modules
  • A suite of sensors for monitoring pH, EC/Temperature, ORP, and DO levels
  • Package comes with a 4-port manifold, tubing and calibration packs
  • Provides access to the Nuravine Cloud

Pump

  • Italian-made DAP Pump Mini 3 for optimizing energy consumption
  • 3-rotor model for reduced noise and energy consumption
  • Uses DConnect service for remote operations

Controller

  • TrolMaster Aqua-X Pro, a highly advanced irrigation controller
  • Monitors diverse water sensors, including pH, EC / PPM, temperature, and water content
  • Alerts users via mobile notifications for detected issues
  • Provides a customizable irrigation cycle
  • Offers control over irrigation events through digital flow-meter, moisture content sensors, or simple timers

Dosing System

  • Nuravine Batch Doser Bundle, includes two Elixir 3 Pump Modules
  • A suite of sensors for monitoring pH, EC/Temperature, ORP, and DO levels
  • Package comes with a 4-port manifold, tubing and calibration packs
  • Provides access to the Nuravine Cloud

Tank

  • 50 gal (options for 50, 100, or 150 gal tanks)
  • Comes with different slip ball valves for easy servicing
  • Requires 3/4" or 1" hose for connection
  • 2 Selenoid Valves
  • Can be used in batch or recirculation modes.

Dimensions and Material

  • 30”x30”x48” (50gal model)
  • 30”x30”x60” (100gal model)
  • Steel (painted)

30" x 30" (extends to 40" to 75" depending on the tank size selection)

Steel (painted)

Italian-made DAP Pump Mini 3. This advanced pump optimizes energy consumption by adjusting pressure according to system demands. The 3-rotor model reduces noise and energy consumption. Supports remote control functionality via the DConnect service.

TrolMaster NFS-2, one of the most advanced irrigation controllers. It can control multiple irrigation solenoids and pumps. Monitor a diverse range of water sensors measuring pH, EC / PPM, temperature, and water content, and supports an optional DFW-1 flow-meter for enhanced functionality.When paired with optional sensors and the DFW-1 flow-meter, the NFS-2 can monitor up to 50 sensors and alert users via mobile notifications if any issues are detected. It provides a customizable irrigation cycle and offers control over irrigation events through the DFM-1 digital flow-meter, WCS-1 or WCS-2 moisture content sensors, or simple timers.

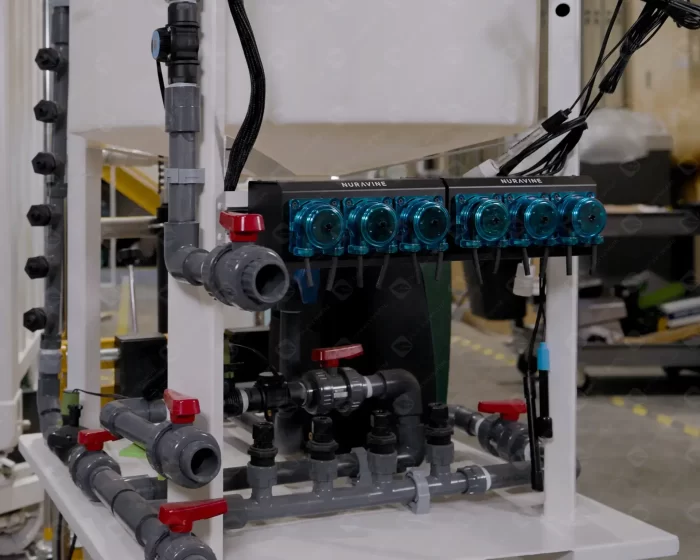

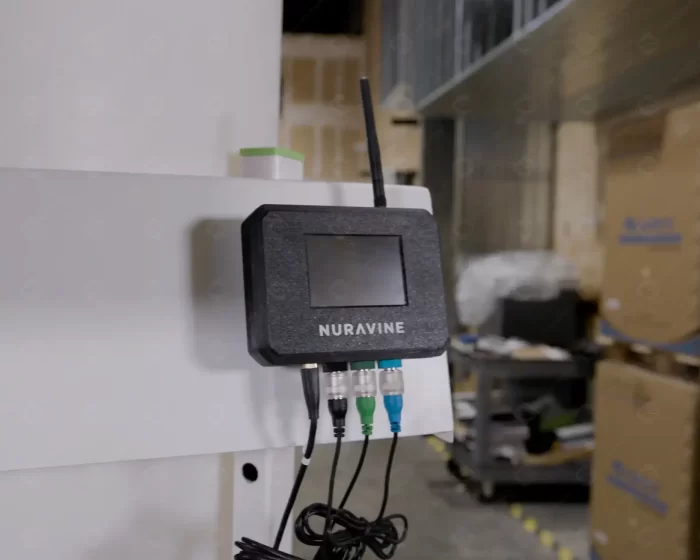

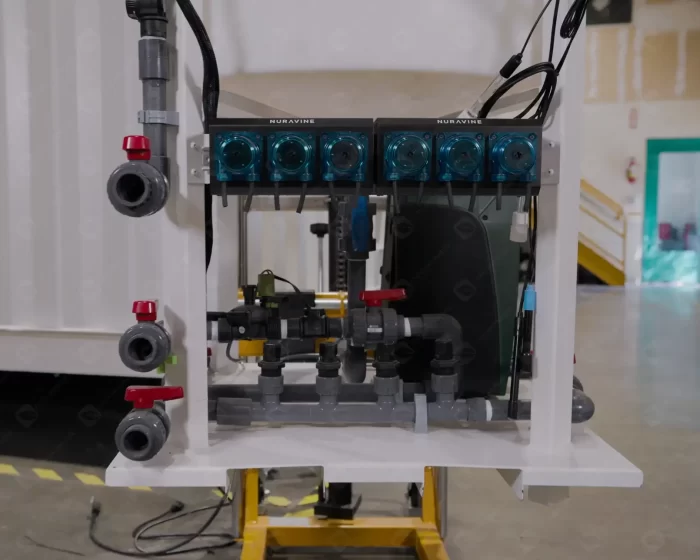

Nuravine Batch Doser Bundle. This advanced system includes two Elixir 3 Pump Modules for individually dosing any 6 part nutrient regimen. It also includes a suite of sensors for monitoring pH, EC/Temperature, ORP, and DO levels. The package comes with a 4-port manifold, tubing, calibration packs, and access to the Nuravine Cloud.

50 gal (options for 50, 100, or 150 gal tanks) liter conversion

Comes with different slip ball valves for easy servicing

Requires 3/4" or 1" hose for connection

2 Selenoid Valves

Can be used in batch or recirculation modes.

Specification

What you get out of the box.

<br><font color="#7b7b7b" face="Roboto, sans-serif"><span style="font-size: 15px; font-weight: 600;">20 AMP Nema 6-15 Outlet</span></font>


20 AMP Nema 6-15 Outlet

Electrical Power

<br><br><font color="#7b7b7b" face="Roboto, sans-serif"><span style="font-size: 15px; font-weight: 600; caret-color: rgb(123, 123, 123);">Nuravine</span></font><br>



Nuravine

Fertigation Controller

<br><font color="#7b7b7b" face="Roboto, sans-serif"><span style="font-size: 15px; font-weight: 600; caret-color: rgb(123, 123, 123);">Indoor Use Only</span></font>


Indoor Use Only

Indoor or Outdoors

<font color="#7b7b7b" face="Roboto, sans-serif"><span style="font-size: 15px; font-weight: 600; caret-color: rgb(123, 123, 123);">6 Peristaltic Pump</span></font>

6 Peristaltic Pump

Fertigation Type

<br><font color="#7b7b7b" face="Roboto, sans-serif"><span style="caret-color: rgb(123, 123, 123); font-size: 15px; font-weight: 600;">TrolMaster Aqua X Pro</span></font>


TrolMaster Aqua X Pro

Irrigation Control


Up to 6x

Fertilizer Container

<br><font color="#7b7b7b" face="Roboto, sans-serif"><span style="font-size: 15px; font-weight: 600; caret-color: rgb(123, 123, 123);">50 Gal (189 L) <br>100 Gal ( 379 L) <br>150 Gal (568L)</span></font>


50 Gal (189 L)
100 Gal ( 379 L)
150 Gal (568L)

Tank Size

<br><font color="#7b7b7b" face="Roboto, sans-serif"><span style="font-size: 15px; font-weight: 600; caret-color: rgb(123, 123, 123);">Up to 80L/min <br> Head up to 55 m</span></font>


Up to 80L/min
Head up to 55 m

Pump

Shipping

How it works

Order directly through our website or through our wholesalers

Free Shipping to Canada and all 48 contiguous US states.

Plug-and-Play farming
